Fresh air,
healthy living.
Premium ventilation and dehumidification systems, engineered for the tropical climate of Phuket — for villas, boutique hotels and refined homes.
What this catalogue covers
- ERV + Dehumidification (2-in-1) — vertical and ceiling-mounted units for villas and apartments.
- Central Dehumidifiers — with fresh-air intake, for whole-house humidity control and ventilation in one unit.
- Smart Controllers — Wi-Fi, Modbus, with PM2.5, CO₂, VOC and temperature sensors.
- Accessories — ducts, vents, diffusers and finishings.
01
Heat Recovery Ventilation
ERV + Dehumidification

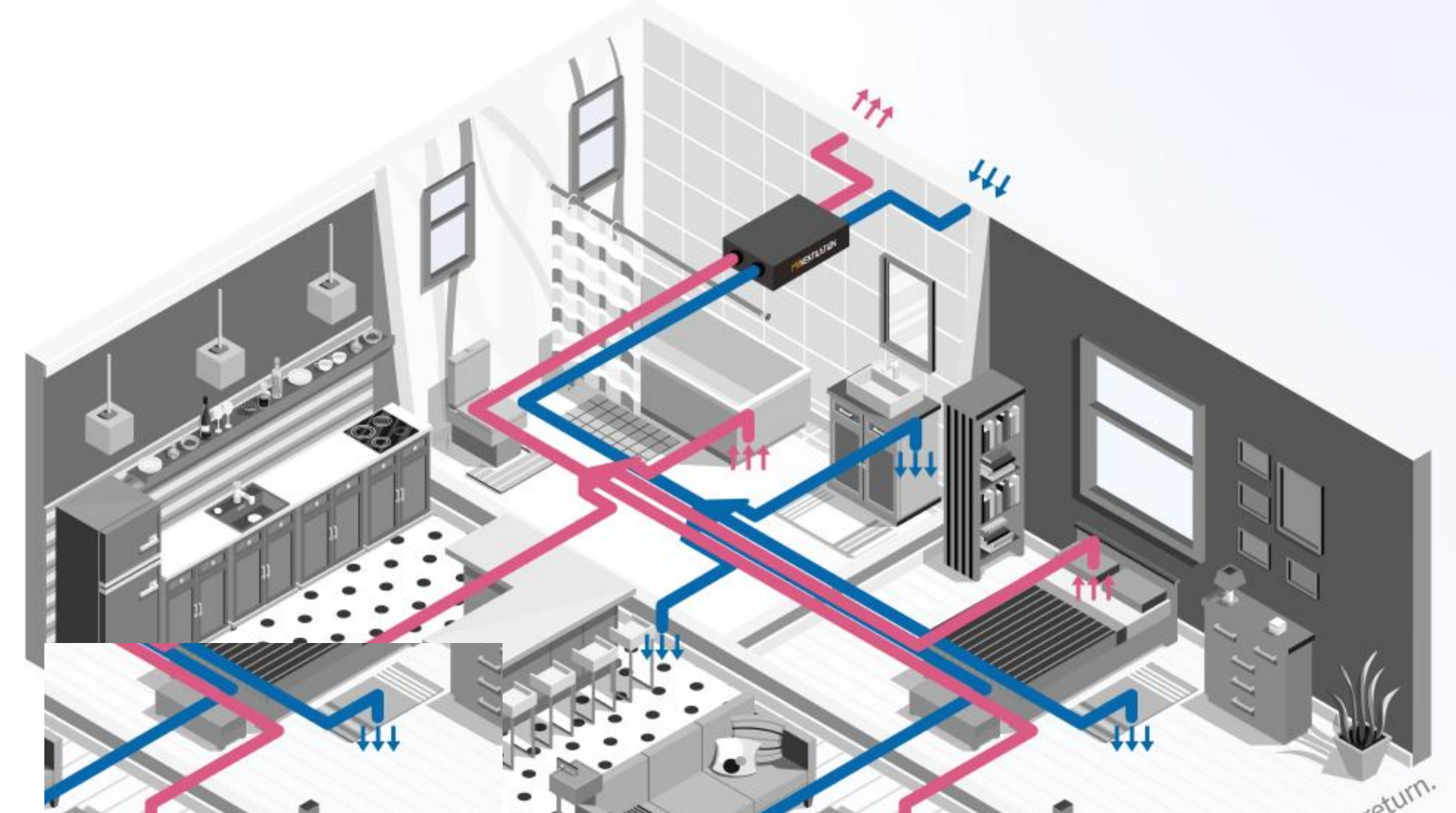

A single unit that brings filtered fresh air, extracts stale humid air, recovers up to 73% of the energy in between, and dries the room when it matters most. The cleanest answer to Phuket's climate — built into your villa or installed in a discreet utility room.
Fresh air in
Stale air out

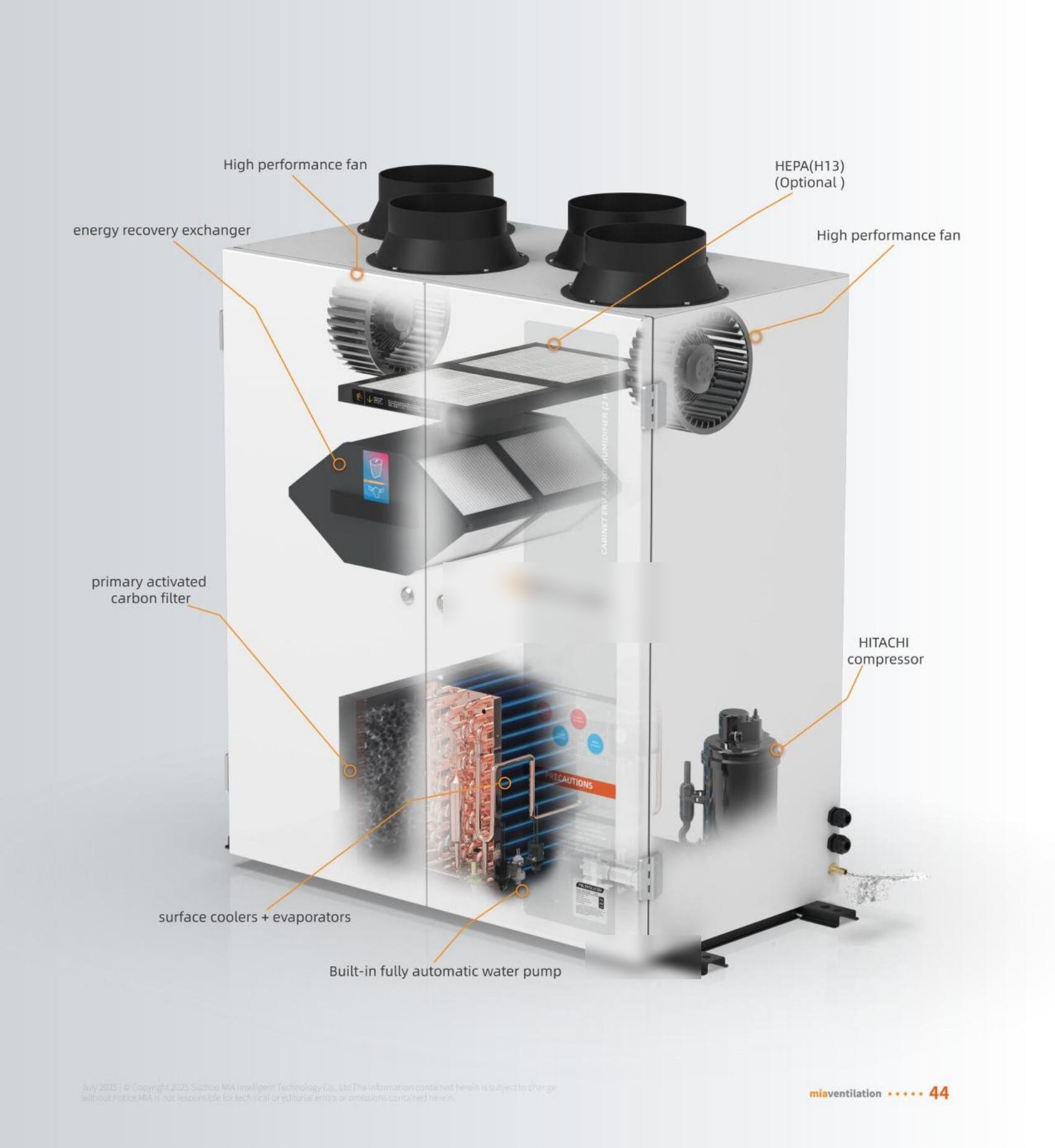

Vertical Cabinet
Stand-up
Discrete, floor-standing cabinet for utility rooms, garages or service corridors. Easy to access for maintenance, ducted to multiple rooms.
✓
2-in-1 unitHeat-recovery ventilation and active dehumidification in one cabinet — no parallel system needed.
✓
HEPA H13 readyOptional medical-grade HEPA filter removes 99.97% of PM2.5 particles, pollen and spores.
✓
HITACHI compressorIndustrial-grade compressor and twin surface coolers for reliable operation in tropical conditions.
✓
Auto drain pumpBuilt-in 12V automatic water pump with high-level safety sensor — no risk of ceiling damage.
REF · MIA-35BXF/HRC
Stand-up ERV
+ Dehumidifier 350
Compact vertical 2-in-1 unit for villas up to ~150 m². Delivers 350 m³/h of filtered, heat-recovered fresh air with 33 L/day of dehumidification capacity.
Air flow350 m³/h
Dehumidification33 L/day
Power supply220 V
Power380 W
Static pressure~255 Pa
Heat recovery68–73%
Noise level43–49 dB(A)
Dimensions (mm)700×396×888
Weight59 kg
RefrigerantR134A
Price (EXW)
REF · MIA-50BXF/HRC
Stand-up ERV
+ Dehumidifier 500
Larger capacity vertical unit for villas up to ~250 m². 500 m³/h of fresh ventilation with 58 L/day dehumidification — ideal for whole-house coverage.
Air flow500 m³/h
Dehumidification58 L/day
Power supply220 V
Power585 W
Static pressure~265 Pa
Heat recovery66–71%
Noise level45–53 dB(A)
Dimensions (mm)700×562×888
Weight79 kg
RefrigerantR407C
Price (EXW)

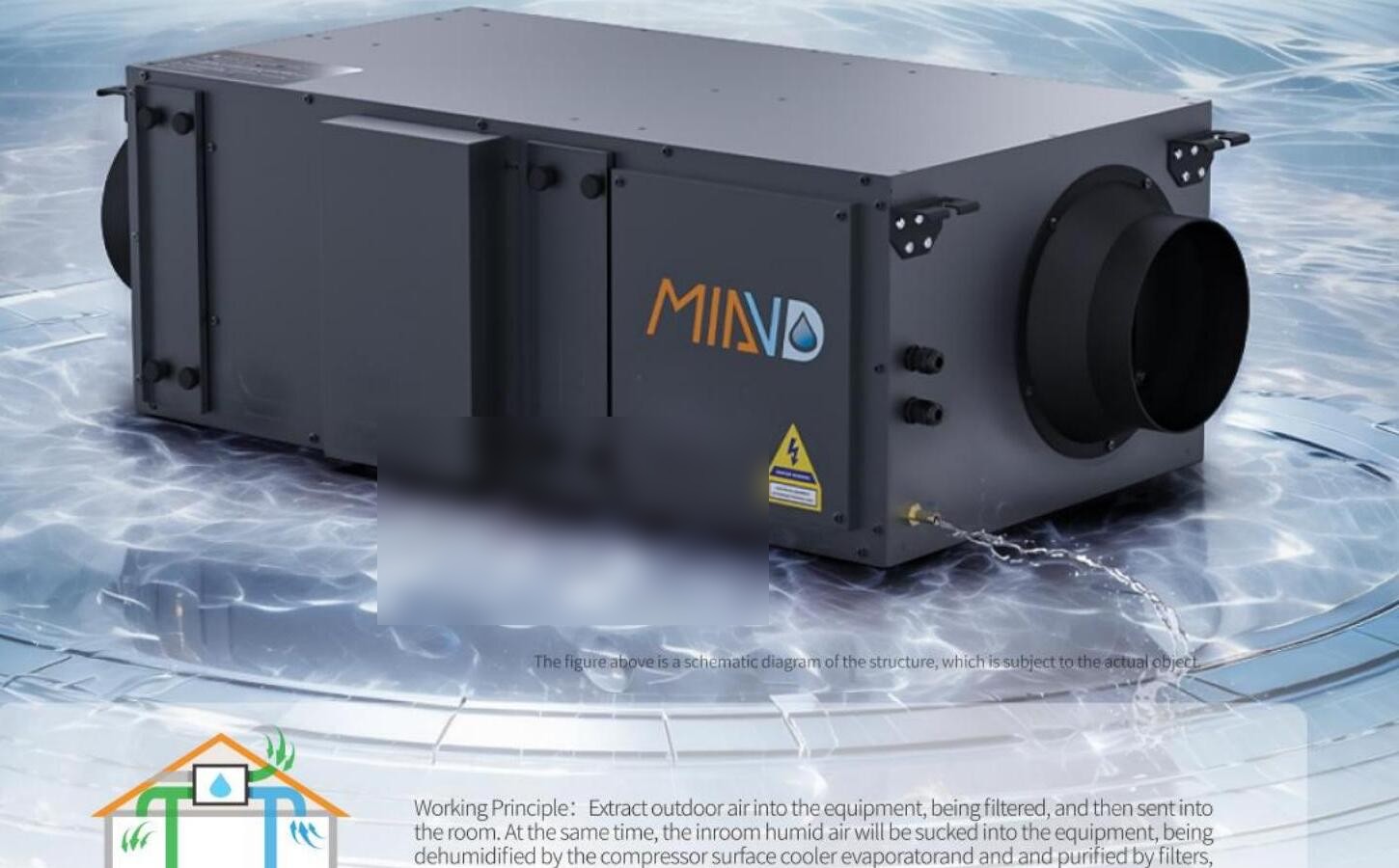

Ceiling-Mounted
Built-in
Slim, low-profile unit designed to be hidden in false ceilings — invisible from the living space. The perfect choice when discretion and architecture matter.
✓
Ultra-low profileDesigned to fit standard 250–300 mm false ceilings without compromising airflow.
✓
Whisper-quietDedicated EC motor and acoustic insulation keep noise below 45 dB(A) in living areas.
✓
Multi-zone ductingSix air outlets feed bedrooms, lounge and service rooms from a single discreet unit.
✓
Remote service hatchAccess panel positioned for easy filter changes without disturbing the ceiling finish.
REF · MIA-25BXF/HR
Built-in ERV
+ Dehumidifier 350
Ceiling-mounted 2-in-1 unit, ideal for villas and apartments where space is at a premium. Delivers 350 m³/h with 33 L/day dehumidification — fully concealed.
Air flow350 m³/h
Dehumidification33 L/day
Power supply220 V
RefrigerantR134A
MountingCeiling
Auto drainBuilt-in
HEPA H13 readyOptional
CompressorHITACHI
Price (EXW)
REF · MIA-35BXF/HR
Built-in ERV
+ Dehumidifier 500
Larger ceiling-mounted unit for full-house coverage. 500 m³/h ventilation with 58 L/day dehumidification, fully ducted with multiple outlets.
Air flow500 m³/h
Dehumidification58 L/day
Power supply220 V
RefrigerantR407C
MountingCeiling
Auto drainBuilt-in
HEPA H13 readyOptional
CompressorHITACHI
Price (EXW)
02
Whole-house humidity control
Central Dehumidifiers
A central unit that delivers filtered outdoor air while actively removing humidity. Five capacities to match every villa or hotel — from compact apartments to large estates. Every unit in this range includes a fresh-air intake.
Fresh-air dehumidification
Central Dehumidifier
with Fresh Air Intake
A central unit that delivers filtered outdoor air while actively removing humidity. Five capacities to match every villa size — from compact apartments to large estates.
| Reference |
MIA-35BXF |
MIA-50BXF |
MIA-80XF |
MIA-150XF |
MIA-200XF |
| Air flow (m³/h) | 350 | 500 | 800 | 1 500 | 2 000 |
| Dehumidification (L/day) | 35 | 60 | 85 | 200 | 220 |
| Refrigerant | R134A | R407C | R22 | R22 | R22 |
| Fresh-air intake | Yes | Yes | Yes | Yes | Yes |
| Filter (extra option) | + | + | + | + | + |
| Recommended for | Apt / studio | Small villa | Mid villa | Large villa | Estate / hotel |
| Price (EXW) |
|
|
|
|
|
All units are CE-marked, factory tested, and supplied with a 1-year manufacturer warranty. Wooden crate, transport and safety report available as separate line items.
03
Smart Air Control
Controllers
Wi-Fi-enabled wall panels that read your indoor air in real time and adjust ventilation accordingly. PM2.5, CO₂, VOC, temperature and humidity — at a glance, on the wall or in your phone.
Pilot your air quality

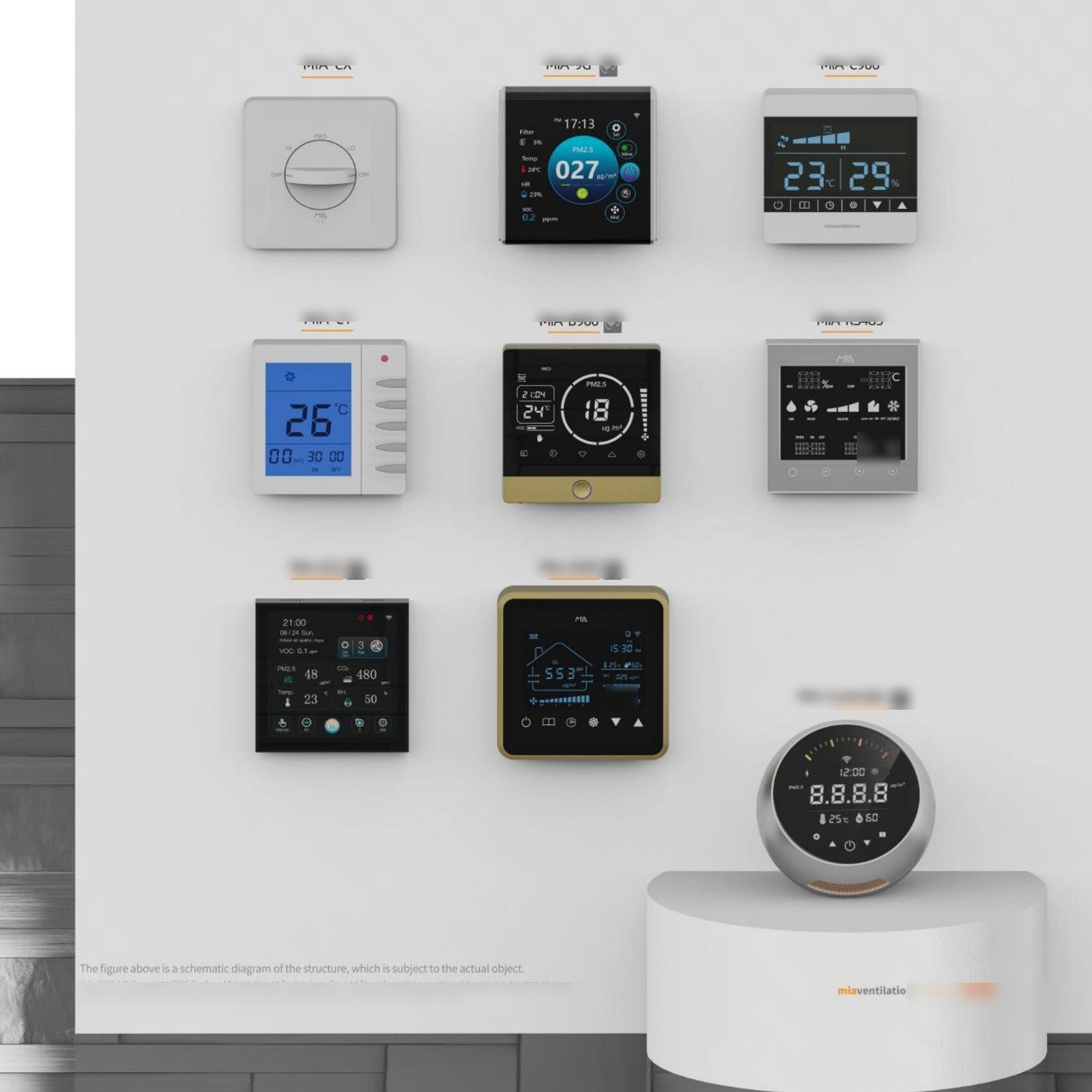

Smart Controllers
Three controller tiers, all Wi-Fi-enabled with the Tuya app and Modbus RS485 for integration into your home automation.
A900
Essential
- 3-speed control
- Temperature & humidity display
- Manual / auto switching
- Filter change reminder
- Wi-Fi (Tuya app)
Price
6GS
Advanced
- Everything in A900
- PM2.5 air-quality display
- CO₂ display
- Inner-loop / electrostatic mode
- Modbus RS485
Price
9G
Premium
- Everything in 6GS
- VOC display
- Auto-brightness at night
- Clock display
- Sensitive monitoring
Price
Connectivity & integration
All three controllers support Wi-Fi (Tuya/Smart Life app) for remote control from your phone, anywhere in the world. The 6GS and 9G also expose a Modbus RS485 port for integration with home-automation systems (KNX, Loxone, Crestron, Control4 via gateway).
04
Ducts, vents & finishings
Accessories
A full ecosystem of ducts, vents, diffusers and finishings to match your installation — from concealed PE corrugated piping in slabs, to elegant indoor air vents in the right diameter for every room.
Complete the system
Accessories

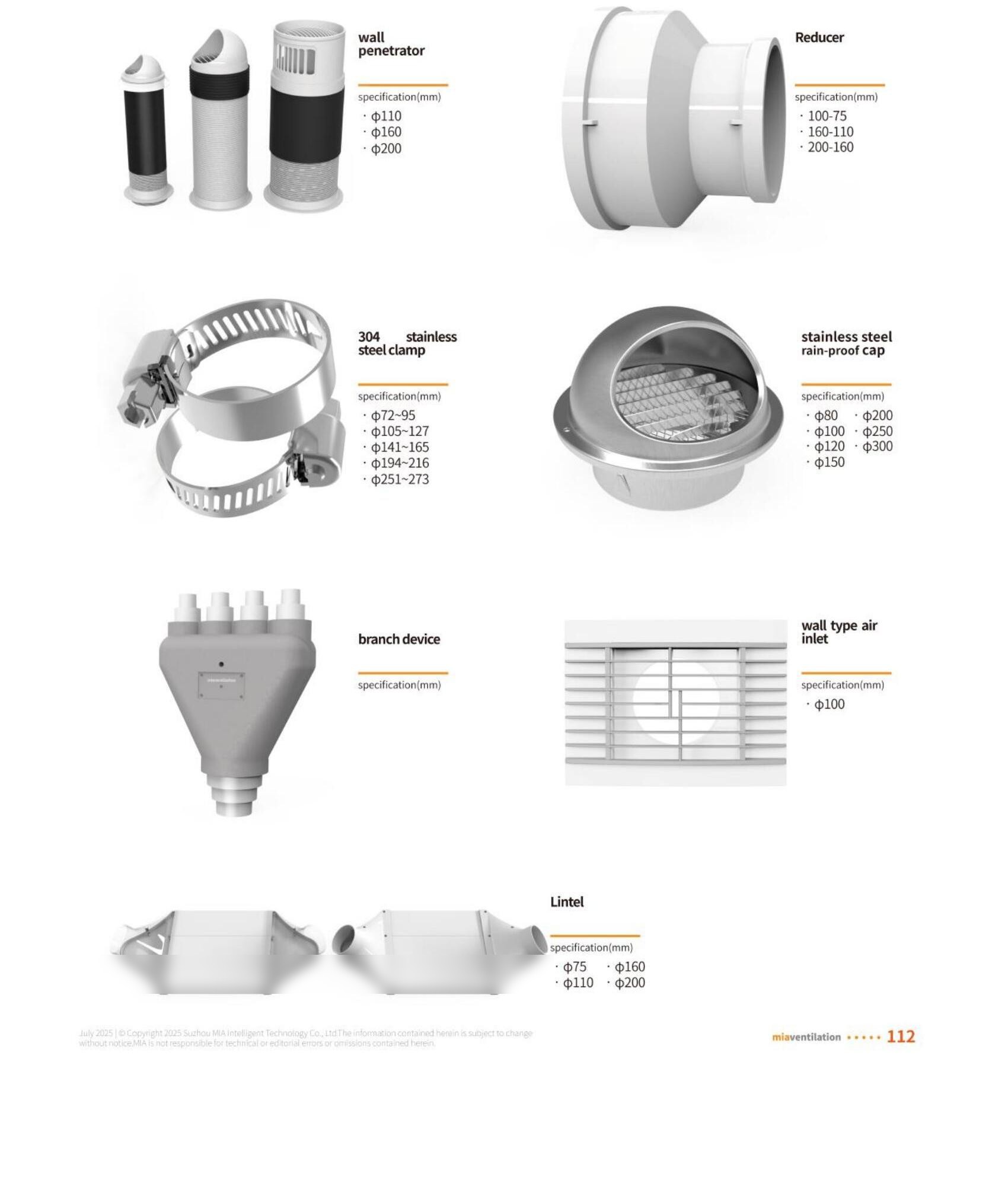

Every installation is unique. We supply a full range of compatible ducts, vents, reducers and finishings — sized and matched to each villa. Below: outdoor & weather components, indoor vents, fittings and connectors.

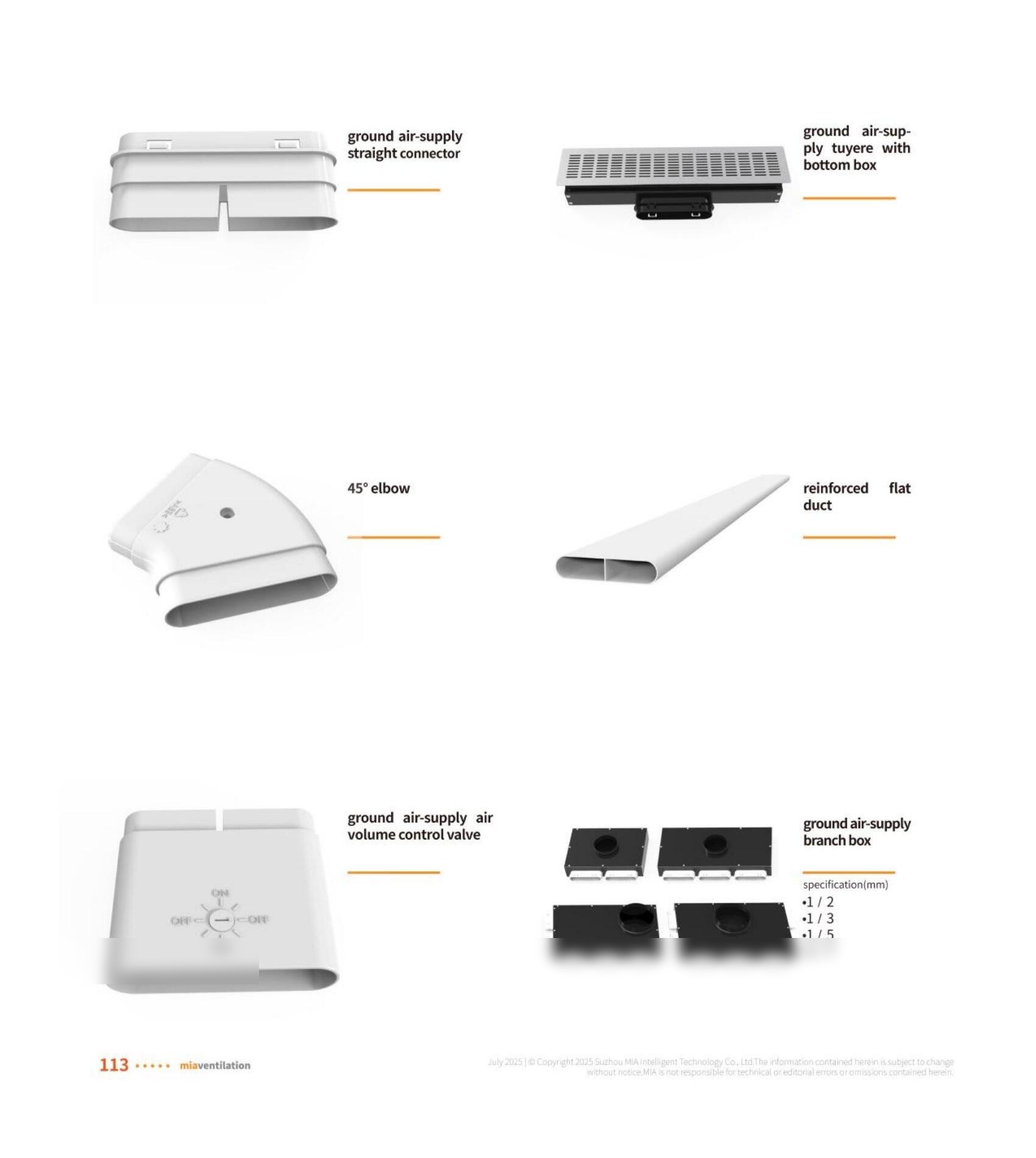

Ground air-supply & ducting
Distribution & airflow
Connectors, elbows, valves and branch boxes for the air distribution network — concealed in floor or ceiling, sized to each room of your villa.
Detailed pricing available on request — accessory pricing depends on quantity (MOQ from 1 piece, special pricing from 1 000 pcs).
★ One supplier, three solutions
The Andaman
Living advantage
Continuous ventilation and dehumidification is the most effective way to protect your villa in Phuket — but it draws power 24/7. By combining Andaman Air with Andaman Solar (and Andaman EV when relevant), you turn a recurring cost into a long-term saving.
Air alone, on the grid
Air-quality equipment runs day and night on grid electricity. At Phuket rates, a typical villa setup adds 3 500 to 7 000 THB / month to the electricity bill — a recurring cost paid forever.
Air + Solar combined
A photovoltaic array sized for your air-quality load powers the system during the day and feeds the grid otherwise. Payback typically within 4–6 years, then 20+ years of clean energy at near-zero cost.
The three Andaman Living brands
Air
Andaman Air
VMC double flux, ERV + dehumidification, central units, smart controllers, accessories.
Energy
Andaman Solar
Tier-1 photovoltaic panels, hybrid inverters, battery storage, monitoring & maintenance.
Mobility
Andaman EV
EV charging stations for home and commercial use, European standards, smart-grid ready.
Get a combined assessment
Tell us about your villa, your typical occupancy and your electricity bill. We'll size the right air-quality system, the matching solar array and — if needed — your EV charging station, and quote them together so you see the real long-term economics.
Get in touch
Let's talk
Your villa
deserves better air.
Reach out for a site visit, a tailored proposal, or simply a conversation about what your villa needs — air, solar or EV. We answer every enquiry within 48 hours.
